Electromagnetic valve controls the movement of the spool through the magnetic field generated by the electromagnetic coil. When the electromagnetic coil is energized, the spool will move to a position under the action of the magnetic force, so that the valve port is opened or closed, so as to achieve the conduction or blocking of the fluid channel.

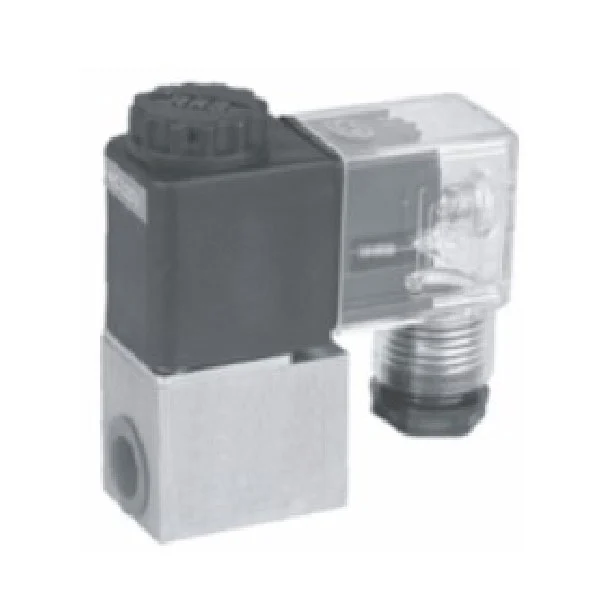

Product No.: NC258 Series solenoid valves
Model | NC115-010-M4 | NC115-025-06 | NC115-025-08 | ||
Working Medium | Air, Water, Oil | ||||
Motion Pattern | Direct acting | ||||
Type | Normal Close | ||||
Orifice(mm) | 1.0 | 2.5 | |||
VC Value | 0.10 | 0.23 | |||
Connection Port | M4/M5 | 1/8'' | 1/4'' | ||
Fluid Viscosity | <20CST | ||||
Working Pressure(MPa) | Air, Water, Oil:0~0.7 | ||||
Max. Pressure Resistance(MPa) | 1.2 | 1.6 | |||
Working Temperature(℃) | -10~80℃ | ||||
Voltage Range | ±10% | ||||
Protection Class | IP65 | ||||
Power Consumption | AC:5.5VA DC:6W | ||||
Insulation Class | Class F | ||||
Material of Body | Aluminum, Brass or S.S | ||||
Seal | NBR or VITON | ||||
Response Time | 0.05s |
Electromagnetic valve mainly composed of valve body, valve core, electromagnetic coil, reset spring and other components. The valve body is the housing that holds the fluid, the spool is used to control the opening and closing of the channel, the electromagnetic coil is used to generate driving force, and the reset spring pushes the spool back to the initial position when the electromagnetic coil is powered off.
1. Simple control: Electromagnetic valve just power on or off the solenoid coil to realize the switch of the valve.
2. Quick response: the opening and closing of the valve port can be completed in a short time.
3. Reliable sealing: Good sealing performance helps prevent fluid leakage.
1. Pneumatic system: Electromagnetic valve control the entry and exit of compressed air, drive the cylinder and other executive components.
2. Hydraulic system: realize the on-off control of small flow oil circuit.
3. Refrigeration system: adjust the flow direction and flow of refrigerant.
4. Water supply system: Electromagnetic valve switch to control water flow.
