Hydraulic Coil
  • Hydraulic Coil Hydraulic Coil

Hydraulic Coil

The hydraulic coil is a crucial part of the hydraulic system, usually made of enameled wire wound on the iron core, and the external insulation material is generally wrapped for protection.

Send Inquiry

Product Description

Hydraulic coil working principle is based on electromagnetic induction. When the current passes through the coil, a magnetic field is generated, and the action of the magnetic field makes the spool move to overcome the spring force or other resistance, thereby changing the connectivity state of the oil circuit inside the hydraulic valve to achieve the control of the direction, pressure and flow of the hydraulic oil.


Specification

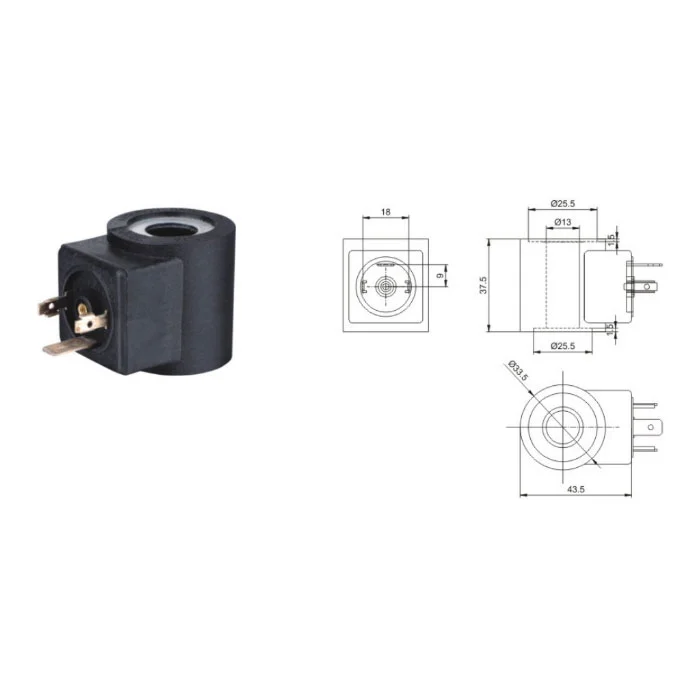

Product No.: NC048 Overall Dimension

Hydraulic Coil


Normal Voltage AC220V AC110V DC24V DC12V
Normal Power AC 15VA
DC 12W
Other voltage and power be customized
Insulation Class F、H
Connection type DIN43650A


Details:

Structurally, the Hydraulic Coil material and shape of the hydraulic coil will affect the strength and distribution of the magnetic field. High quality core can improve magnetic field efficiency and reduce energy loss.

In terms of performance, the resistance value of the hydraulic coil determines the size of the current passing through, which in turn affects the magnetic field strength and the driving force of the valve core. At the same time, the inductance characteristics of the coil will also affect the response speed of the current change.


Product Feature:

1. Excellent electromagnetic performance: Hydraulic Coil can produce a strong and stable magnetic field to ensure the effective drive and control of the spool.

2. High-precision control: Hydraulic Coil can achieve accurate adjustment of flow, pressure and direction in the hydraulic system.

3. Fast response: Hydraulic Coil can react quickly to current changes, so that the spool can act quickly to meet the real-time control needs of the system.


Applications:

1. Industrial machinery: such as machine tools, injection molding machines, die casting machines, etc., for precise control of various actions and processing processes.

2. Construction machinery: such as excavators, cranes, loaders and other equipment in the hydraulic system, to achieve complex action control.

3. Agricultural machinery: such as harvesters, planters, etc., help to improve the efficiency and accuracy of agricultural operations.


Hot Tags: Hydraulic Coil, China, Manufacturer, Supplier, Factory, Customized, Quality, Cheap, Made in China
